DXF/DWG Task Functionality in SOLIDWORKS PDM 2019

With the 2019 release, SOLIDWORKS PDM Professional is now able to support DWG and DXF file creation for sheet metal files requiring a flat pattern output using the Convert Task in PDM. This option has long been asked for by PDM users. Various workarounds have been used with mediocre success, less than impressive outputs or complex configuration requirements that make the manual output method just as appealing.

Help Article Link for Reference

The task setup itself has not changed much at all which makes implementation very simple for a PDM Administrator.

DXF DWG Task Functionality in SOLIDWORKS PDM 2019



Where the changes can be seen are in the “Conversion Options…” when the DWG and DXF file type is the selected output file format.

DXF DWG Task Functionality in SOLIDWORKS PDM 2019



The options within the PDM conversion task are nearly identical to the options when manually exporting a DWG/DXF file from a SOLIDWORKS Sheet Metal part file.

Since this is intended to be an automated function, a standard output selection will need to be decided. Anything that would need to be chosen to the contrary of the standard setup will either need be done manually by the users or, if happening often enough, set up as a separate task.

The task is able to handle a wide variety of sheet metal part files in conjunction with the standard SOLIDWORKS Sheet Metal flat pattern functionality.

For example:

Single body parts with curves

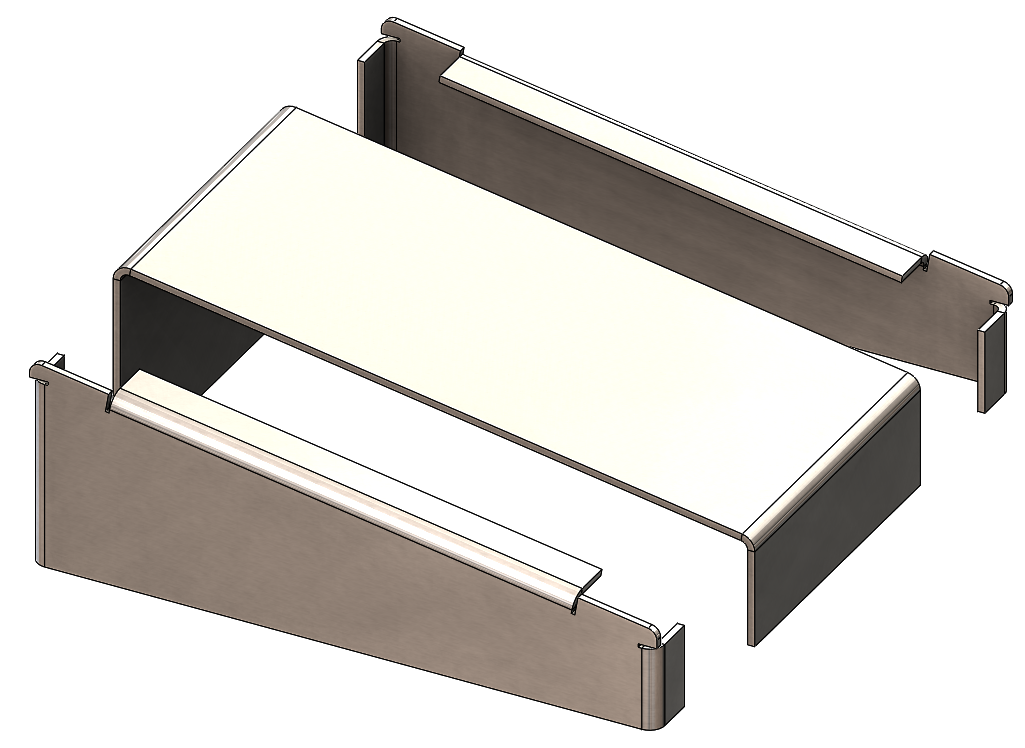

Multi-body parts

DXF/DWG Task Functionality in SOLIDWORKS PDM 2019

DXF/DWG Task Functionality in SOLIDWORKS PDM 2019

DXF/DWG Task Functionality in SOLIDWORKS PDM 2019

DXF/DWG Task Functionality in SOLIDWORKS PDM 2019

DXF/DWG Task Functionality in SOLIDWORKS PDM 2019

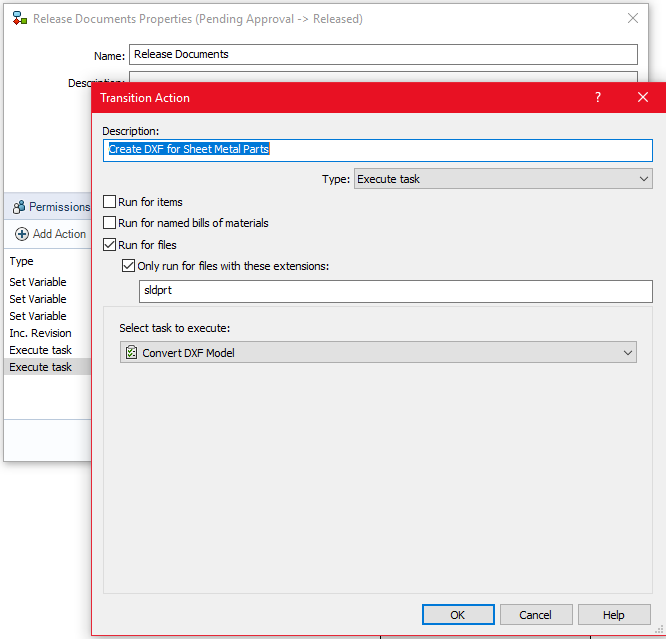

This task, like the standard Drawing to PDM conversion task, can be added to the CAD workflow for even more automation driven by PDM.

With this 2019 PDM enhancement, companies using PDM will be able to take advantage of the ability to create DXF and DWG flat pattern outputs of their sheet metal parts.

Thanks for reading! For more information, check out our PDM Video and Resource Library. Don’t forget to also subscribe to the Alignex Blog to have information just like this delivered right to your inbox.
