What is Real ECAD/MCAD Collaboration? Hint: It’s Not Exchanging Files

The traditionally siloed design experience between mechanical and electrical designers is now struggling to maintain its separation. The introduction of intelligently connected products and the seamless product experience is driving design processes to become more intertwined, connected, and collaborative than ever. And yet, despite this pressure, it still seems like the ECAD and MCAD domains are still operating under old rules. Bad habits die hard, and it’s even more challenging to form new ones. So what will it take for us as ECAD designers to begin working together with our MCAD counterparts, to fully mirror the connected and cohesive products that we create?

Pain before Change

It’s rare these days to find a mechanical design that exists in complete isolation with no integrated Printed Circuit Board (PCB). And yet as connected as our products are, we commonly find ourselves pitted in the middle of a design process that is fragmented, inefficient, and ultimately painful for the designers involved. The results of this failed communication process that we all struggle with are far-reaching, and result in some fairly obvious pain points, including:

  • Inefficient design processes. Mechanical and electrical designers commonly struggle to organize and manage multiple revisions of the same design in their own isolated domains. And what does this lead to? Breakdowns in communication, a stop-and-go design process, and lost hours that can never be retrieved.
  • Missed deadlines and budgets. As our attempts at collaboration continue to struggle and stall, we increasingly become reliant on costly methods to solve our communication issues through the use of prototypes. Trying to repair the cracks in the design process with this age-old method just leads to wasted money and blown budgets.
  • A poor customer experience. While many of us might not think about our design once it’s released into the wild, the ripple effects of a failed design process often extend into the realm of the consumer. Without products being fully tested, your company risks losing money covering the costs for warranties when products fail to meet their quality standards.

The pain points are pretty obvious, and I think we have all experienced them at one time or another in our design processes. The real question that we all care about is – what is being done about it?

Current Solutions

The engineering community has been searching for a reliable solution to the growing collaboration issues between ECAD and MCAD design teams for years. We’re all familiar with these attempted solutions, the STEP models, paper dolls, prototypes, and using email to communicate design changes. The thing is, we all openly embrace these methods, not so much because they work as we want them to, but because it’s all we’ve got.

In many ways, we have simply gotten used to collaboration processes that are broken and never worked right in the first place.

Is the manual import/export process of STEP models between ECAD and MCAD design environments really that efficient? Is it worth dealing with the potential loss of critical design data during each translation? Yes, it works, but no, it’s not ideal.

The same can be said for any of the above accepted methods of collaboration. How many ignored emails, last minute ECOs, and import/exporting routines do we need to deal with?

I’m going to just say it…

There’s a huge elephant in the room and everyone is doing their best to ignore it.

I’m ready for something different, how about you?

Making Collaboration King

We all know that Altium Designer is one of the most productive and efficient design tools out there for PCB design, and now it’s time to make design collaboration between electrical and mechanical design teams equally as productive. How do we plan on doing this?

SOLIDWORKS PCB CONNECTOR for Altium Designer was built specifically to solve the problem of ECAD/MCAD collaboration. This extension finally takes all of the guesswork out of the design collaboration process by providing a managed environment for design revisions between Altium Designer and your mechanical designer’s environment in SOLIDWORKS. Let’s see what’s inside:

Managed ECAD/MCAD Change Process

It’s now easier than ever to keep everyone on the same page in the design process. Designers can instantly push changes to component placement, board shape, and mounting holes between Altium Designer and your mechanical designer’s environment.

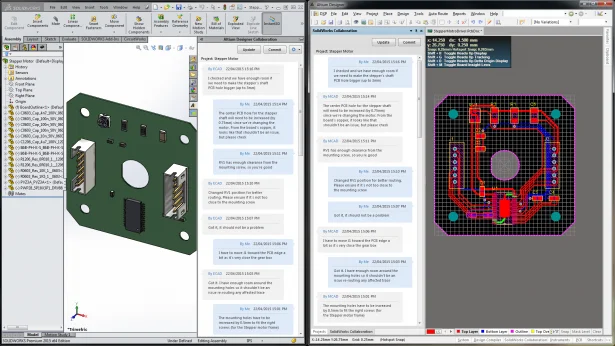

Managed change process between Altium Designer and SOLIDWORKS® with comment and revision history
Managed change process between Altium Designer and
SOLIDWORKS® with comment and revision history



Design Commenting and Revision Management

Ever wanted to know exactly what your mechanical designer changed and why? A detailed comment and revision history will show what committed changes were made to your PCB by your mechanical designer, and you instantly accept or reject them as needed.

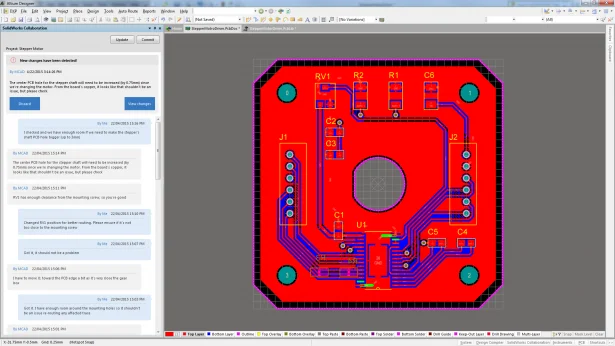

Commenting and revision management options in Altium Designer



Access to PCB Copper Geometries

You’ll now be able to export board assemblies to your mechanical designer’s environment with included copper geometries, and perform detailed thermal, vibration, and other simulations.

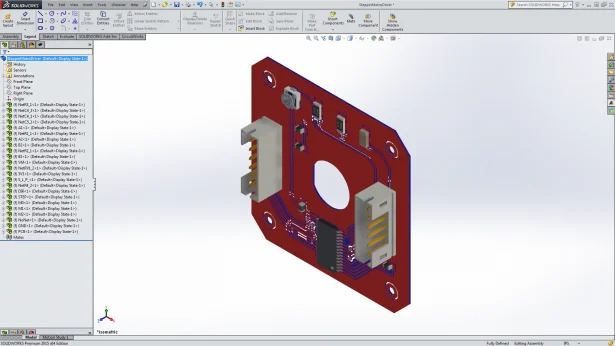

Included copper geometries for PCBs in SOLIDWORKS
Included copper geometries for PCBs in SOLIDWORKS



Unified Component Data

Finally, you don’t have to waste time gluing together your electrical and component data manually. Components in development will automatically be linked between Altium Designer and an MCAD environment, with changes reflected in either design domain.

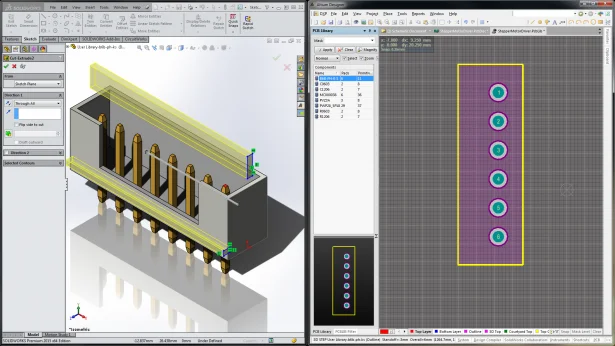

Working on the same component in Altium Designer and SOLIDWORKS with unified component data
Working on the same component in Altium Designer and
SOLIDWORKS with unified component data



SOLIDWORKS Support

You’ll now have access to native mechanical model file formats for component bodies and enclosures, taking the guesswork out of your 3D clearance checking process and ensuring your board fits right the first time.

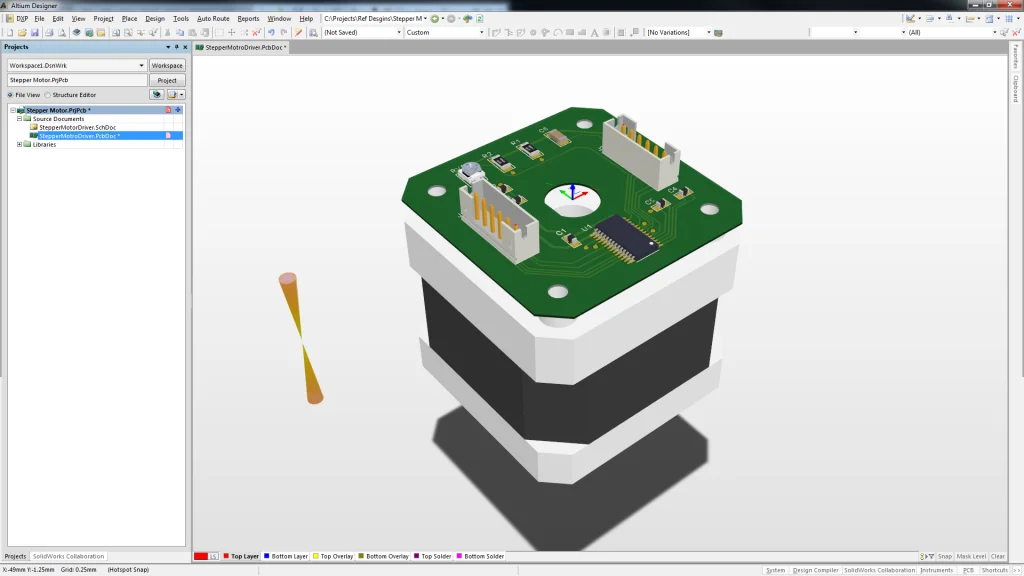

SOLIDWORKS component and enclosure models in Altium Designer
SOLIDWORKS component and enclosure models in Altium Designer



Want to learn more? You can read about all of the great features and benefits in this new extension on the www.SOLIDWORKSPCB.com.
