SOLIDWORKS Tech Tip: Drawing Table Anchor Points

By

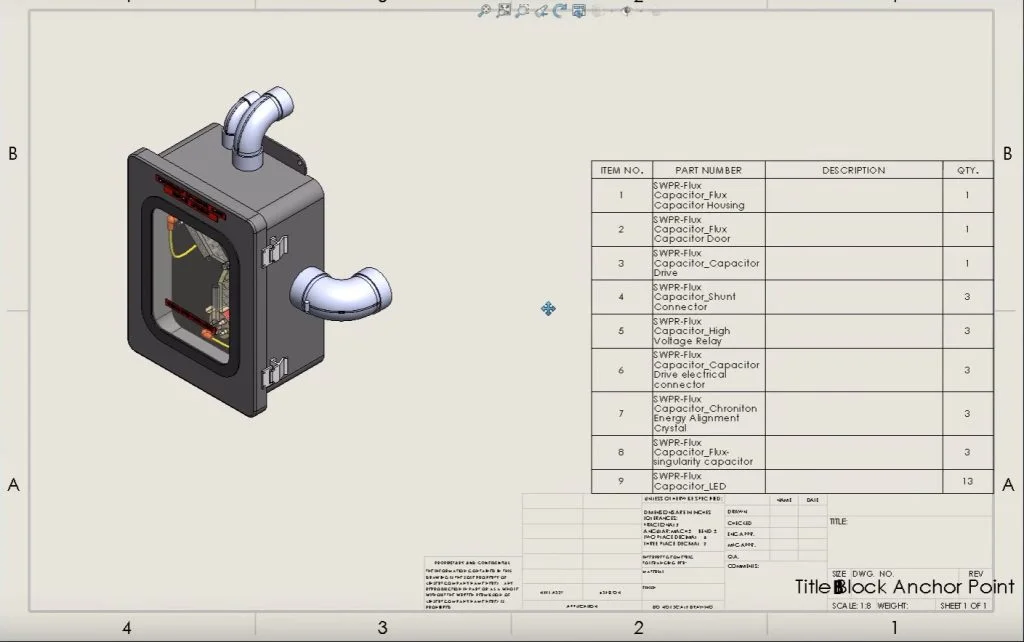

Many users often times place their drawing tables, like the Bill of Materials, in the same location every time but, did you know that there’s a way to have them automatically snap into place? We can do this by creating a new drawing template and adding Drawing Table Anchor Points. This is found in the FeatureManager Design Tree and under the Sheet Format tab. By pre-defining Drawing Table Anchor Points, we will speed up our design process and ultimately make us more efficient when using SOLIDWORKS! Watch the following video to learn more!



Want to see more SOLIDWORKS Tech Tips? Check out our playlist on YouTube to catch up on past videos or you can even jump ahead to the next video!

Do you have a suggestion for the next Tech Tip? Tell us in the comments; we’d love to hear your ideas!
